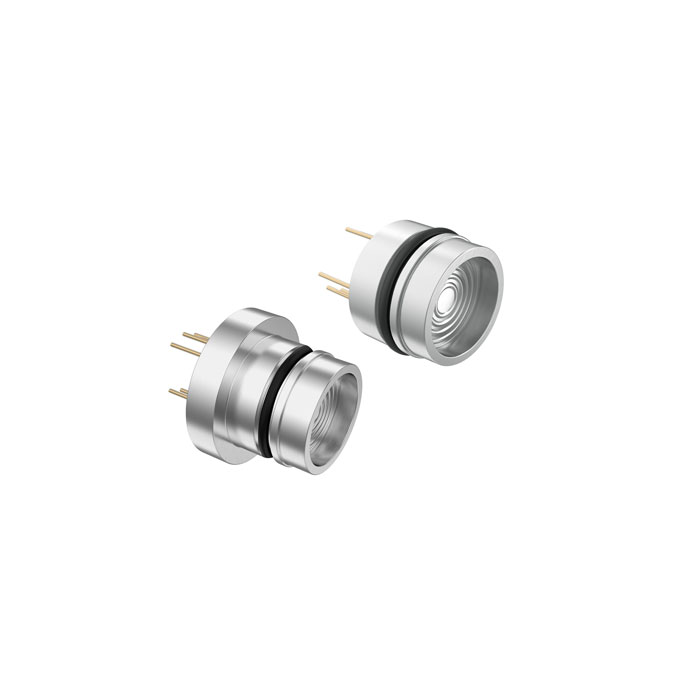

Piezoresistive pressure sensor

NPS13

Features

- Piezoresistive pressure chip encapsulated in an oil-filled metal housing

- Small size

- Measuring ranges from 2bar to 1000bar

- Gauge pressure, absolute pressure

- Accuracy: ±0.25%FSO(Typ.)

- Ø12.6mmx10.5mm



Application

- Hydraulic and pneumatic

- OEM

- Laboratory

- Water treatment

- IoT pressure measurement



Technical Data

Pressure range

2 bar...1000 bar

Accuracy

±0.25 %FS(Typ.)

Output signal

mV/1.5mA

Operating temperature

-40 to 120°C

Dimension

Ø12.6mmx10.5mm

Diaphragm material

316L stainless steel
